Com Lite 3cct Backlit Panels
Commercial Recessed
Colour (K)
3000K - 5700K
3000K - 5700K
Height (mm)
25
25
Length (mm)
595 - 1195
595 - 1195
System Power (W)
20 - 60
20 - 60
Width (mm)
295 - 595
295 - 595
Product Description

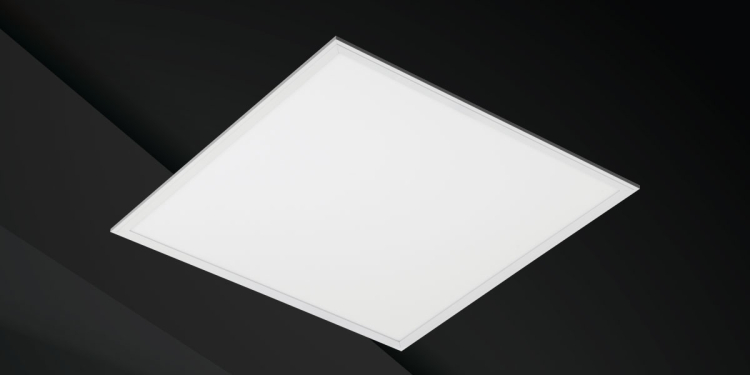

Com Lite 3cct Backlit Panels for commercial areas, designed to be recessed into suspended ceilings. Designed in a simple white finish, these panels are suitable for a range of commercial applications including board rooms, corridors, hotels, reception areas, hospitals and retail spaces.
- This range is available in a range of sizes and wattages: 15–60W depending on model.
- Dimmable options available: DALI, DSI, 1-10 V & Triac as well as emergency options: self-test, standard and DALI self test.
- Colour temperatures selectable on site: 3000 K, 4000 K, 5700 K.
Comes with 5 year warranty and LED lifetime of >50,000 hrs (L80B20) at 25 °C. A true example of "fit and forget" lighting.
Key Features
- IP44 weather protection, IK06 impact resistance
- Class II electrical safety rating
- Designed as recessed opal backlit LED panels with standard multi-watt and 3-CCT selection (3000 K, 4000 K, 5700 K)
- Input: 220-240 VAC, 50-60 Hz with TVG constant current driver
- Includes remote driver
- Accessories available: plasterboard clips, surface mount frames, recessed frames, suspension kits.
- Simple white finish
Available Specification
Colour (K) | 3000K 4000K 5700K |
Height (mm) | 25 |
Length (mm) | 595 1195 |
Lumen Output (lm) | 2100lm 2410lm 2250lm 4765lm 5045lm 4940lm 4420lm 4880lm 4680lm 7015lm 7890lm 7500lm |
Lumen per Circuit Watt | > 105 > 120 > 110 > 125 > 135 > 130 > 115 |
System Power (W) | 20 40 60 |
Width (mm) | 295 595 |
Files
Technical Datasheet |
Products
Code | Colour (K) | Length (mm) | Lumen Output (lm) | Lumen per Circuit Watt | System Power (W) | Width (mm) | Files | |
|---|---|---|---|---|---|---|---|---|
CLP12003MW Com Lite 3cct Backlit Panels 3000K/40w | 3000K | 1195 | 4420lm | > 105 | 40 | 295 | ||
CLP12003MW Com Lite 3cct Backlit Panels 4000K/40w | 4000K | 1195 | 4880lm | > 125 | 40 | 295 | ||
CLP12003MW Com Lite 3cct Backlit Panels 5700K/40w | 5700K | 1195 | 4680lm | > 115 | 40 | 295 | ||
CLP12006MW Com Lite 3cct Backlit Panels 3000K/60w | 3000K | 1195 | 7015lm | > 110 | 60 | 595 | ||
CLP12006MW Com Lite 3cct Backlit Panels 4000K/60w | 4000K | 1195 | 7890lm | > 130 | 60 | 595 | ||
CLP12006MW Com Lite 3cct Backlit Panels 5700K/60w | 5700K | 1195 | 7500lm | > 115 | 60 | 595 | ||
CLP6003MW Com Lite 3cct Backlit Panels 3000K/20w | 3000K | 595 | 2100lm | > 105 | 20 | 295 | ||
CLP6003MW Com Lite 3cct Backlit Panels 4000K/20w | 4000K | 595 | 2410lm | > 120 | 20 | 295 | ||
CLP6003MW Com Lite 3cct Backlit Panels 5700K/20w | 5700K | 595 | 2250lm | > 110 | 20 | 295 | ||
CLP600MW Com Lite 3cct Backlit Panels 3000K/40w | 3000K | 595 | 4765lm | > 125 | 40 | 595 |
