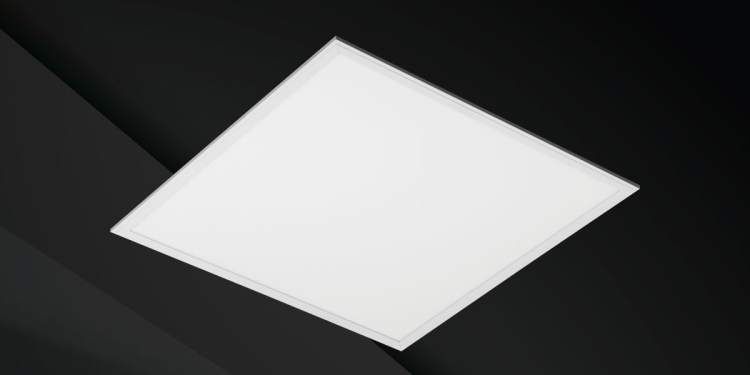

Com Lite 3CCT Multi Wattage Opal Panels
Commercial Recessed
3000/4000/5700
Remote Constant Current
IP44
20/23/30/35/40 - 20/23/30/35/40
220-240
Com Lite 3CCT Multi Wattage Opal Panels are designed to deliver flexible, energy-efficient illumination across a wide range of commercial environments. Featuring selectable wattage settings and integrated 3CCT technology, these versatile LED panels allow installers and specifiers to tailor both brightness and colour temperature to suit individual project requirements. Manufactured with a high-performance opal diffuser for even light distribution, the panels provide a clean, modern aesthetic while helping to reduce glare and improve visual comfort in offices, schools, healthcare facilities and retail spaces.
Built for long-term reliability, the Com Lite range offers up to 100,000 hours LED life expectancy alongside excellent efficacy and dependable performance. The lightweight design and straightforward installation process make the panels an ideal solution for both new-build and retrofit applications, while the wide beam angle ensures consistent illumination throughout the space. Combining adaptability, efficiency and contemporary styling, the Com Lite 3CCT Multi Watt Opal Panels provide a practical lighting solution for modern commercial interiors.
Emergency Option Codes
3 different emergency options available:
- Standard 3 hour: add /M3
- Self Test: add /STM3
- DALI Self Test: add /DLM3
Dimmable Option Codes
4 different dimming options:
- 1-10V dimmable: add /D
- DSI digital dimmable: add /DD
- DALI and Switch Dimmable: add /DL
- Trailing Edge Dimmable: add /TD
Accessories
Wide range of accessories including clips, suspension kits and frames:
- Set of 4 Plasterboard Clips: LEDP/PBC
- 4 Wire 3 Metre Suspension Kit: SUSKIT/3M
- 4 Wire 5 Metre Suspension Kit: SUSKIT/5M
- 4 Wire 2 Metre Suspension Kit with Ceiling Box: SUSKIT/BOX
- Surface Mount Frame for CLP6003MW: PSF600/300BL
- Surface Mount Frame for CLP600MW: PPSF600/600BL
- Surface Mount Frame for CLP12003MW: PSF1200/300BL
- Surface Mount Frame for CLP12006MW: PSF1200/600
- Recessed Mount Frame for CLP6003MW: PRF600/300
- Surface Mount Frame for CLP600MW: PRF600/600
- Surface Mount Frame for CLP12003MW: PRF1200/300
- Surface Mount Frame for CLP12006MW: PRF1200/600
- Warranty: 3 or 5 year options
- 3cct as standard
- 100,000 hr LED life expectancy
- Zero maintenance
- Wattage selectable as standard
Application | Commercial Recessed |
Bulb Type | SMD LED |
CRI - Color Rendering Index (1-100) | >80 |
Colour (K) | 3000/4000/5700 |
Diffuser | Opal PMMA diffuser |
Driver | Remote Constant Current |
Finish | White |
IP Rating | IP44 |
Lifetime (h) | 100,000 |
Light Distribution Angle (°) | 120° |
Lumen Output (lm) | 2100 (3000K)/2410 (4000K) 4765 (3000)/5045 (4000) 4420 (3000K)/4880 (4000K) |
Lumen per Circuit Watt | > 120lm per watt > 135lm per watt > 125lm per watt |
System Power (W) | 15/18/20 20/23/30/35/40 20/23/30/35/40 30/40/50/55/60 |
Voltage (V) | 220-240 |
Technical Datasheet |
Code | Application | Colour (K) | Driver | IP Rating | Lifetime (h) | System Power (W) | Voltage (V) | Files | |
|---|---|---|---|---|---|---|---|---|---|
CLP12003MW Com Lite 3CCT Multi Wattage Opal Panels | Commercial Recessed | 3000/4000/5700 | Remote Constant Current | IP44 | 100,000 | 20/23/30/35/40 | 220-240 | ||
CLP600MW Com Lite 3CCT Multi Wattage Opal Panels | Commercial Recessed | 3000/4000/5700 | Remote Constant Current | IP44 | 100,000 | 20/23/30/35/40 | 220-240 | ||
CLP12006MW Com Lite 3CCT Multi Wattage Opal Panels | Commercial Recessed | 3000/4000/5700 | Remote Constant Current | IP44 | 100,000 | 30/40/50/55/60 | 220-240 | ||
CLP6003MW Com Lite 3CCT Multi Wattage Opal Panels | Commercial Recessed | 3000/4000/5700 | Remote Constant Current | IP44 | 100,000 | 15/18/20 | 220-240 |
