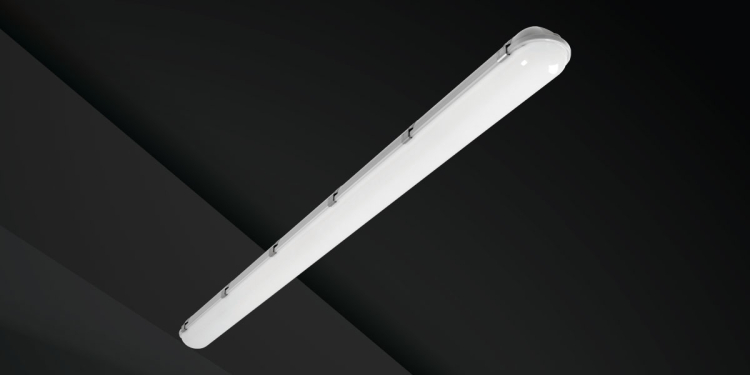

Com Lite IP65 CP Luminaires

Industrial
Application
Industrial/Commercial Lighting
Colour (K)
4000 - 5000
Connection
Through wired, connector at each end
Driver
Constant-Current Lifud Driver - European driver
Height (mm)
73
IP Rating
IP65
Length (mm)
600 - 1500
Mounting
Surface Mounted
System Power (W)
20 - 65
Voltage (V)
220-240
Width (mm)
100
Product Description

This range of IP65 rated luminaires have been designed with durability and functionality in mind. Designed with quality, anti-corrosive materials and components, they are suitable for use in farmyards, garages, plantrooms, underground carparks, workshops , warehouses and retail sheds.

This range offers dimming capabilities alongside options to fit a batten mounted PIR or inbuilt microwave sensor depending on user needs.

CP65 models are supplied with CREE LED bulbs and a European brand driver,

Dimmable options

/D – 1–10V dimmable

Provides smooth analogue dimming using a 1–10V control signal, making it a practical option for straightforward lighting control systems where adjustable light levels are required.

/DD – DSI digital dimmable

Compatible with DSI digital dimming systems, allowing luminaires to be controlled electronically for consistent, reliable adjustment of light output across an installation.

/DL – DALI and switch dimmable

Offers compatibility with DALI lighting control systems as well as switch-dimming functionality, providing a flexible choice for projects where more advanced or centralised lighting management is required.

/TD – trailing edge dimmable

Designed for use with compatible trailing-edge dimmers, providing a simple way to adjust light levels without the need for a dedicated digital control system.

Key Features
  • Zero maintenance
  • High quality LED chips and reliable driver
  • Polycarbonate housing and polycarbonate covers
  • Supplied with stainless steel clips (304)
  • 5 year warranty
Available Specification
Application
Industrial/Commercial Lighting
Bulb Type
SMD LED
CREE LED
Colour (K)
4000
5000
Connection
Through wired, connector at each end
Diffuser
Polycarbonate
Driver
Constant-Current Lifud Driver
European driver
Finish
Polycarbonate body
Height (mm)
73
IK - Impact Protection
IK08
IP Rating
IP65
Length (mm)
1500
1200
600
Lifetime (h)
>50,000
Lumen Output (lm)
3050
8980
8500
6120
3000
4000
2000
4100
2100
6100
Lumen per Circuit Watt
125
100
Mounting
Surface Mounted
Optical Opening Angle (°)
120º
System Power (W)
24
65
48
40
20
Voltage (V)
220-240
Width (mm)
100
Files
Technical Datasheet
Products
Code
Bulb Type
Colour (K)
Length (mm)
Lumen Output (lm)
System Power (W)
Files
SMD LED
4000
1200
2100
20
SMD LED
5000
1200
2000
20
SMD LED
4000
600
2100
20
SMD LED
5000
600
2000
20
SMD LED
4000
1500
3050
24
SMD LED
5000
1500
3000
24
SMD LED
4000
1200
4100
40
SMD LED
5000
1200
4000
40
SMD LED
4000
1500
6120
48
SMD LED
5000
1500
6100
48
Accessories
Dimmable Options
/D (1-10V dimmable)
/DD (DALI dimmable)
/DL (DALI and Switch Dimmable)
/TD (Trailing Edge Dimmable)
Accessories
/SN (Batten Mounted PIR)
/MS (Inbuilt Microwave Sensor)
Emergency Versions
/M3 (Standard 3 Hour Emergency)
/M3ST (Self Test 3 Hour Emergency)
/DLM3 (DALI Emergency)
