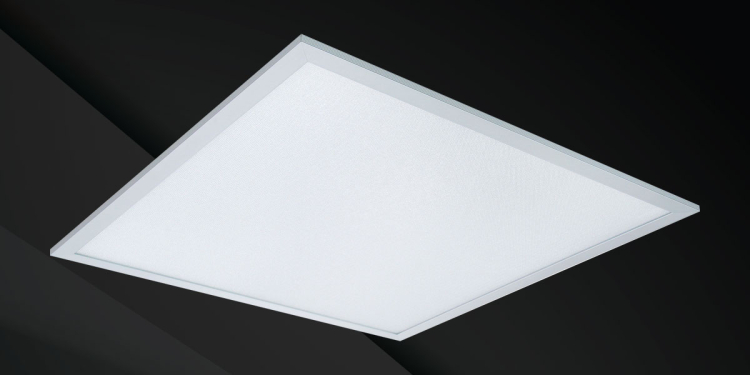

Com Lite TPa Low UGR Opal Panels
Commercial Surface/Recessed
4000
Various options available
Remote Constant Current
28
IP44
595 - 1195
Surface or Recessed
Add /ST for Self Test
23 - 60
220-240
295 - 595
The Com Lite TPa Low UGR range of opal panels are suitable for both surface mounting and recessed mounting into plasterboard ceilings across a wide range of sectors including retail units, schools, hospitality areas, public use buildings and more.
With a 100,000 hour lifetime expectancy and highly fire resistant TP(a) diffuser, these luminaires can be supplied with inbuilt microwave sensor or corridor function if used in plasterboard or suspended ceilings. Recessed and surface frames available.
5 year warranty.
Mounting Frames
Surface Mount Frame for TPA23LG/4 + TPA30LG/4 + TPA40LG/4: PSF600/600BL
Surface Mount Frame for TPA302LG/4: PSF1200/300BL
Surface Mount Frame for TPA60LG/4: PSF1200/600BL
Recessed Mount Frame for TPA23LG/4 + TPA30LG/4 + TPA40LG/4: PRF600/6
Recessed Mount Frame for TPA302LG/4: PRF1200/300
Recessed Mount Frame for TPA60LG/4: PRF1200/600
Set of 4 Plasterboard Clips for Recessed Mounting: LEDP/PBC
You will need extra for sizes larger than 595 x 595mm.
- 100,000 hour lifetime
- TP(a) diffuser
- Supplied with remote constant current driver for ease of wiring
- Eaglerise, Lifud or premium brand power supply
- Dimmable and emergency options available
- 5 year warranty
- Emergency versions available. Add M3 for standard 3 hour emergency, STM3 for self test or DLM3 for Dali self test emergency
- Dimmable versions available. /D for 1-10V dimmable /DD for DSI digital dimmable /DL for Dali and switch dimmable /TD for trailing edge dimmable
- Suspension kits available: SUSKIT/3M for 4 Wire 3 Metre Suspension Kit | SUSKIT/5M for 4 Wire 5 Metre Suspension Kit | SUSKIT/BOX for 4 Wire 2 Metre Suspension Kit with Ceiling Box
Application | Commercial Surface/Recessed |
Bulb Type | SMD LED |
CRI - Color Rendering Index (1-100) | 80+ |
Colour (K) | 4000 |
Diffuser | TP(a) |
Dimmable (Y/N) | Various options available |
Driver | Remote Constant Current |
Finish | White Finish |
Height (mm) | 28 |
IP Rating | IP44 |
Length (mm) | 595 1195 |
Lifetime (h) | 100,000 |
Lumen Output (lm) | 2850 3650 4610 7200 |
Lumen per Circuit Watt | > 120 |
Mounting | Surface or Recessed |
Self Test (Y/N) | Add /ST for Self Test |
Sensor | Remote sensor only |
System Power (W) | 23 30 38 60 |
Voltage (V) | 220-240 |
Width (mm) | 595 295 |
Technical Datasheet |
Code | Length (mm) | Lumen Output (lm) | System Power (W) | Width (mm) | Files | |
|---|---|---|---|---|---|---|
TPA23LG/4 Com Lite TPa Low UGR Opal Panels - 23W | 595 | 2850 | 23 | 595 | ||
TPA302LG/4 Com Lite TPa Low UGR Opal Panels - 30W (large) | 1195 | 3650 | 30 | 295 | ||
TPA30LG/4 Com Lite TPa Low UGR Opal Panels - 30W | 595 | 3650 | 30 | 595 | ||
TPA40LG/4 Com Lite TPa Low UGR Opal Panels - 38W | 595 | 4610 | 38 | 595 | ||
TPA60LG/4 Com Lite TPa Low UGR Opal Panels - 60W | 1195 | 7200 | 60 | 595 |
