Commercial Suspended TLB Series
Commercial Surface / Suspended
Application
Commercial Suspended
Commercial Suspended
Colour (K)
4000 - 5700
4000 - 5700
Driver
Philips
Philips
Height (mm)
65
65
IP Rating
IP40
IP40
Length (mm)
620
620
System Power (W)
113
113
Width (mm)
270
270
Product Description

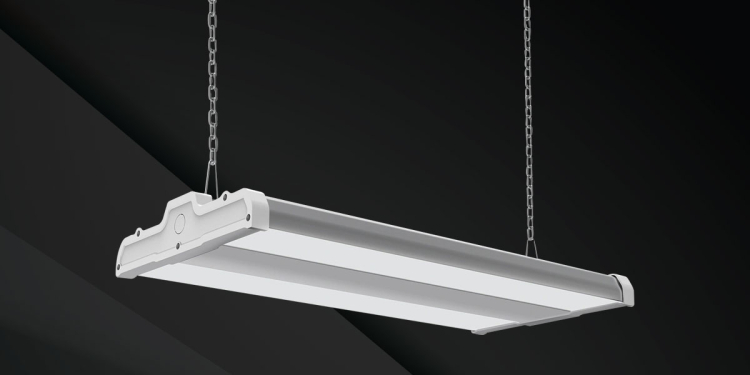

General use range of LED suspended lowbay luminaires designed to be highly efficient with a 50,000 hr life expectancy. With dimmable options and a 5 year Philips driver warranty as standard, the TLB series is ideal for use in warehouses, retail, larger educational spaces and more.
This range offers 4000K lightsource as standard, but is also available in 5700K. This product can be adjusted by our workshop to provide lower power/lumens on request.
Dimming Options
- Add /D for 1-10V dimmable.
- Add /DD for DSI dimmable
- Add /DL for DALI and switch dimmable.
Key Features
- 5 year Philips driver warranty
- Zero maintenance luminaires
- > 50,000hr life expectancy
- Manufactured with Philips driver for reliability
Available Specification
Application | Commercial Suspended |
Bulb Type | SMD LED |
CRI - Color Rendering Index (1-100) | 80+ |
Colour (K) | 5700 4000 |
Diffuser | Polycarbonate housing and diffuser |
Driver | Philips |
Height (mm) | 65 |
IK - Impact Protection | IK06 |
IP Rating | IP40 |
Length (mm) | 620 |
Lifetime (h) | 50,000 |
Lumen Output (lm) | 14260 |
Lumen per Circuit Watt | > 125 |
System Power (W) | 113 |
Width (mm) | 270 |
