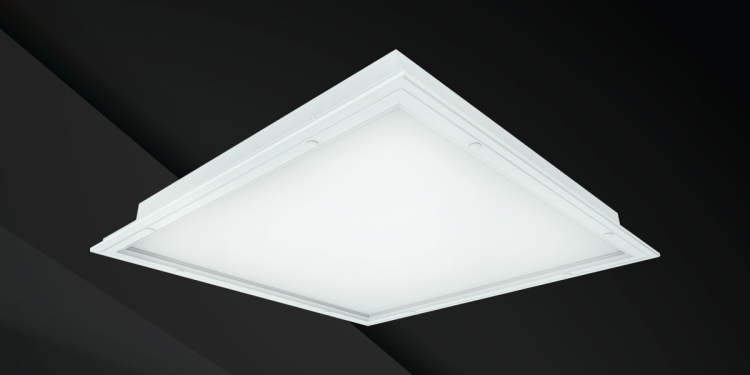

IP65 Walk On Opal Luminaires

Commercial Recessed
Application
Commercial Recessed
Colour (K)
4000
Driver
European driver
Height (mm)
80
IP Rating
IP65
Length (mm)
594 - 1194
System Power (W)
51 - 70
Width (mm)
594
Product Description

Engineered for demanding commercial and industrial environments, these walk-on opal IP65 recessed LED luminaires provide robust performance, reliable protection and excellent illumination in areas where durability is essential. Designed with a reinforced construction capable of withstanding pedestrian traffic, they are ideal for applications where luminaires are installed within floor, ceiling or access panel systems requiring a load-bearing solution.

The sealed IP65-rated design helps protect against dust and moisture ingress, making the range suitable for healthcare facilities, laboratories, food preparation areas, commercial kitchens and other environments where cleanliness and protection are critical. Combining high-efficiency LED technology with a durable architectural design, these luminaires deliver consistent illumination, low maintenance requirements and long-term operational reliability. This range offers high efficacy, long LED life and a variety of control and emergency options.

Suitable for standard 15mm or 24mm ceiling grids.

Key Features
  • Walk-on recessed LED luminaires
  • IP65-rated sealed construction
  • Up to 60,000-hour LED life expectancy
  • Available in multiple sizes and outputs
  • Manufactured with heavy gauge backplate for accidental walk on protection
  • Supplied pre-flexed for easy installation
  • Emergency versions available. Add M3 for standard 3 hour emergency or STM3 for self test 3 hour emergency
  • Dimmable versions available. /D for 1-10V dimmable /DD for DSI digital dimmable /DL for Dali and switch dimmable /BTD for bluetooth dimming
Available Specification
Application
Commercial Recessed
CRI - Color Rendering Index (1-100)
>80
Colour (K)
4000
Diffuser
Opal PMMA diffuser
Driver
European driver
Height (mm)
80
IP Rating
IP65
Length (mm)
594
1194
Lifetime (h)
60.000h @Tc=25°C
Lumen Output (lm)
6055
8045
Lumen per Circuit Watt
> 115
System Power (W)
70
51
Width (mm)
594
Products
Code
Length (mm)
Lumen Output (lm)
System Power (W)
Files
T2350P/65W0
IP65 Walk On Opal Luminaires
1194
8045
70
-
T3200P/65W0
IP65 Walk On Opal Luminaires
594
6055
51
-
Interested in the IP65 Walk On Opal Luminaires?
Please contact us and we'll be happy to help.
