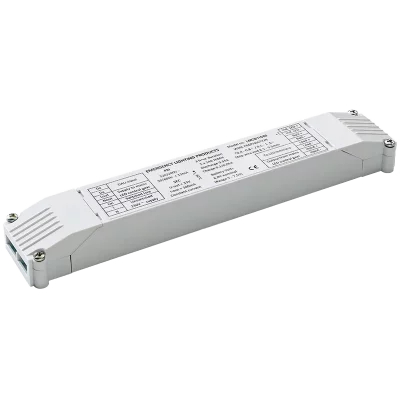

LM-CB Central Battery LED Emergency Control Gear
Emergency Lighting Accessory
Push wire terminals
21
IP20
178
30
The LM-CB 110 Central Battery LED Emergency Control Gear is a compact and versatile emergency lighting solution designed to ensure reliable LED operation during power outages. Engineered for compatibility with 50V or 110V AC/DC central battery systems, this control gear supports hold-off or slave operation and can be configured for single medium power LEDs or up to four low-power LEDs in series, thanks to its selectable output current feature. Its robust polycarbonate housing and push-wire terminals offer ease of installation, while optional cable restraints make it an ideal independent control option for integration with recessed LED downlighters.
Built to meet stringent performance and safety standards, the LM-CB 110 delivers dependable emergency functionality in a durable, space-saving form. Rated for operation in ambient temperatures from -20°C to 50°C with IP20 protection, this module’s compact dimensions make it suitable for a wide range of commercial and industrial lighting applications. Compliant with key industry standards including EN61347 and EN60598-2-22, the LM-CB 110 ensures trusted emergency LED control that installers and specifiers can depend on for critical lighting systems.
- Ingress protection: IP20
- Module rated operating ambient temperature: -20°C to 50°C
- Maximum case temperature: 65°C
- Module output currentLM-CB110/80 – operating up to 4 x LEDs at 80mALM-CB110/500 – operating 1 x LED at 500mALM-CB110/700 – operating 1 x LED at 700mA: 80mA500mA700mA
- Fixing centres: 174mm
- Electrical connections: Push wire terminals
- EN60598-2-22 (clauses 22.6.7, 22.6.9, 22.6.10, 22.6.11, 22.6.12, 22.6.13, 22.17, 22.18: Yes
- EN55015, EN61547: Yes
Application | Emergency Lighting Accessory |
Connection | Push wire terminals |
Height (mm) | 21 |
IP Rating | IP20 |
Length (mm) | 178 |
Width (mm) | 30 |
Technical Datasheet |
