Mexodus Architectural LED Exit Sign
Emergency Signage Lighting
4500
Maintained
137
IP20
4.3
237

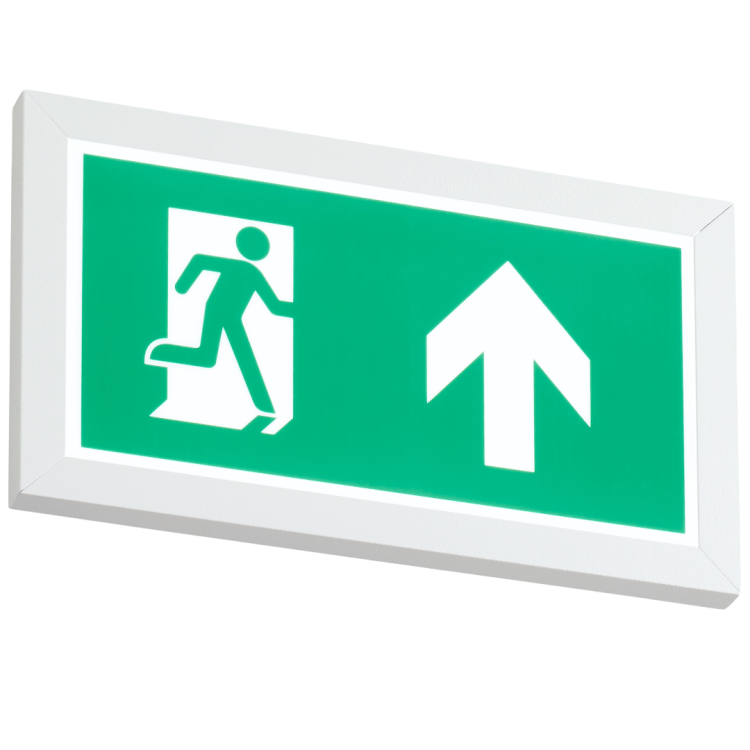

The Mexodus Emergency Exit range has been designed to suit modern architectural environments, offering a flat design framed in a high quality aluminium extrusion which measures 237 x 137mm. The panel ensures uniform illumination through a specially screened light conduction panel giving off a luminance of >500cd/m2. These panels are ideal for use in brightly lit environments.
Mexodus panels are supplied with Maintained operation as standard providing a 3 hour emergency duration. Non-maintained operation is available by excluding a switched live supply. These panels function as stand-alone Self-Test exit signs but can be connected to a DALI system which then offers a range of configuration options; non-maintained, maintained or switched maintained, giving countless possibilities for use into both existing setups and new installations.
- Sign viewing distance: 20m
- DALI & Self-Test options available
- Maintained as standard
- 3 hour emergency duration
- Fully complies to the requirements of EN60598.2.22
- Pictogram legend panels comply with the EC Safety Signs Regulations and latest ISO sign requirements
- 50,000 hours+ lifetime
Application | Emergency Signage Lighting |
Battery Type | 6.4V 1.5Ah LiFePO₄ |
Bulb Type | Wide Angle LEDs |
Colour (K) | 4500 |
Connection | Maintained |
Control Type | DALI |
Diffuser | Screen printed opal polycarbonate legend panel |
Finish | Steel and aluminium base |
Height (mm) | 137 |
IP Rating | IP20 |
Lifetime (h) | 50,000 |
Max Temp (°C) | 25°C |
Number of Bulbs | 10 |
System Power (W) | 4.3 |
Weight (kg) | 3.6 |
Width (mm) | 237 |
Installation Manual | |
Technical Datasheet |
OPTIONS | /DS (Add /DS for Double Sided Signage) | ||||||
LEGENDS | /ECAR (EC format – arrow right) | /ECAL (EC format – arrow left) | /ECAD (EC format – arrow down) | /ISOAR (ISO format – arrow right) | /ISOAL (ISO format – arrow left) | /ISOAU (ISO format – arrow up) | /ISOAD (ISO format – arrow down) |
