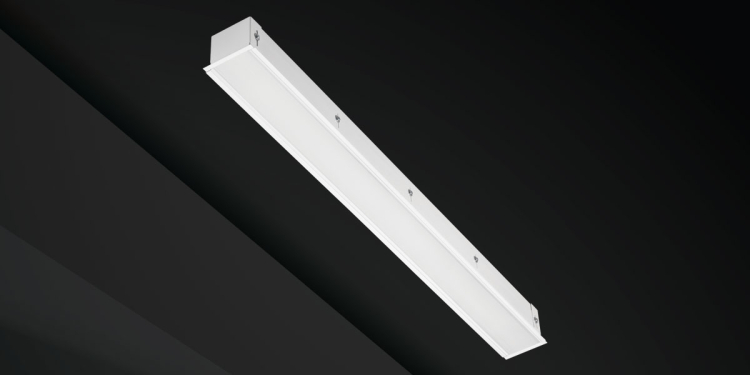

Recessed Linear Luminaires
Ceiling Recessed
4000
Constant Current
IP20
610 - 1450
17 - 42
220-240
110
Designed for modern commercial and retail environments, the Recessed Linear Luminaire range combines a sleek architectural appearance with powerful, energy-efficient illumination. The slim-profile design recesses seamlessly into suspended ceilings, delivering clean lines of light while maintaining a discreet visual presence.
Engineered for applications where both performance and aesthetics matter, the range provides high lumen output and excellent efficacy, making it suitable for offices, retail spaces, educational facilities, circulation areas and other commercial interiors. A high-quality LED system delivers consistent, uniform illumination with a long operational lifespan, helping to reduce maintenance requirements and operating costs.
Ideal for board rooms, corridors, offices and reception areas.
- 50,000hr life expectancy
- 4000k available as standard and 3000k available to special order
- Uniform light distribution with excellent visual comfort
- Suitable for multiple commercial sectors
- Flexible installation options
- Emergency versions available. Add M3 for standard 3 hour emergency, STM3 for self test or DLM3 for Dali self test emergency
- Dimmable versions available. /D for 1-10V dimmable /DD for DSI digital dimmable /DL for Dali and switch dimmable /TD for trailing edge dimmable
- Accessories: Add /JINOPMDIFF for Opal Microprismatic Diffuser 20mtr roll. /RINL for L Section 150x150ml
Application | Ceiling Recessed |
Bulb Type | TCI SMD |
CRI - Color Rendering Index (1-100) | 80+ |
Colour (K) | 4000 |
Cut Out (mm) | 1150x 80-90 1430x80-90 590x 80-90 |
Depth (mm) | 75 |
Driver | Constant Current |
Finish | White Finish |
IP Rating | IP20 |
Length (mm) | 610 1170 1450 |
Lifetime (h) | 50,000 hr life expectancy |
Light Distribution Angle (°) | 90º |
Lumen Output (lm) | 1050 (lowest power) | 2100 (highest power) 2100 (lowest power) | 4200 (highest power) 2525 (lowest power) | 5050 (highest power) |
Lumen per Circuit Watt | > 120 |
Sensor | Remote |
System Power (W) | 17 35 42 |
Voltage (V) | 220-240 |
Width (mm) | 110 |
Technical Datasheet |
Code | Cut Out (mm) | Length (mm) | Lumen Output (lm) | System Power (W) | Files | |
|---|---|---|---|---|---|---|
RIN118035/84 Recessed Linear Luminaires | 1150x 80-90 | 1170 | 2100 (lowest power) | 4200 (highest power) | 35 | ||
RIN146042/84 Recessed Linear Luminaires | 1430x80-90 | 1450 | 2525 (lowest power) | 5050 (highest power) | 42 | ||
RIN62017/84 Recessed Linear Luminaires | 590x 80-90 | 610 | 1050 (lowest power) | 2100 (highest power) | 17 |
