Slim Line Recessed Linear Luminaires
Commercial Recessed
3000/4000/5700 Selectable
Constant Current
29
IP40
150 - 1505
8 - 36
220-240
62 - 300

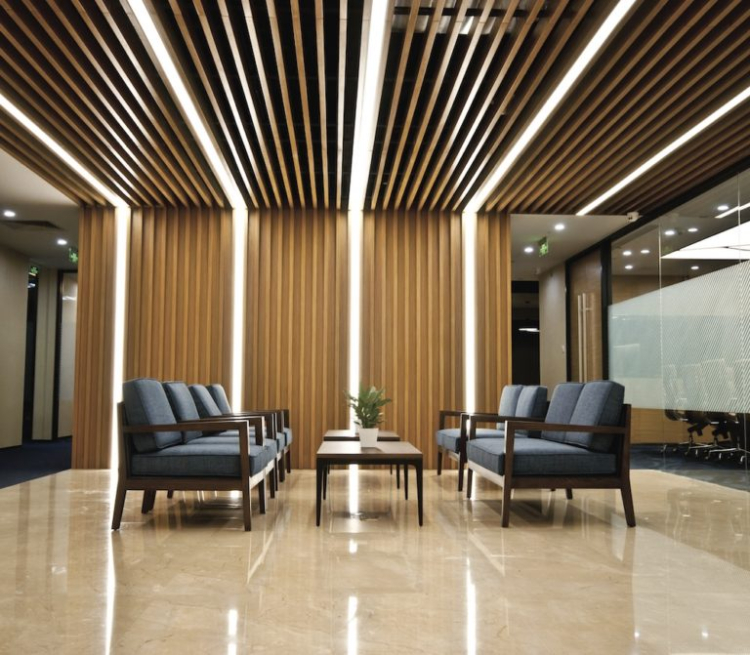

Developed for commercial interiors that demand efficient, reliable and visually comfortable illumination, these recessed slim line LED luminaires combine proven performance with a clean architectural appearance. Designed to integrate seamlessly into suspended ceiling systems, they provide uniform and linear light distribution while maintaining a professional, unobtrusive aesthetic.
The range is suitable for a wide variety of commercial environments including offices, retail spaces, educational facilities and public buildings. Featuring energy-efficient LED technology, selectable colour temperatures and long-life components, these luminaires help reduce energy consumption, minimise maintenance requirements and deliver dependable day-to-day performance. Their versatile design makes them an ideal choice for both new-build and refurbishment projects.
3cct as standard with 50,000hr life expectancy. 5 year warranty.
- Designed for commercial and retail environments
- Selectable 3000K, 4000K and 5700K colour temperatures
- Wide 110° beam angle for uniform coverage
- Up to 50,000-hour life expectancy
- L80B20 performance at 50,000 hours
- Suitable for suspended ceiling installations
- Emergency versions available. Add M3 for standard 3 hour emergency, STM3 for self test or DLM3 for Dali self test emergency
- Dimmable versions available. /D for 1-10V dimmable /DD for DSI digital dimmable /DL for Dali and switch dimmable /TD for trailing edge dimmable
- Accessories: /M2OPMDIFF for Opal Diffuser 20mtr roll. /M2MPDIFF for Microprismatic Diffuser 20mtr roll. /M2JKIT for Joining Kit.
Application | Commercial Recessed |
Bulb Type | SMD LED |
CRI - Color Rendering Index (1-100) | >80 |
Colour (K) | 3000/4000/5700 Selectable |
Cut Out (mm) | 1201×54 607×54 1498×54 300×54, 177×54 300×54, 300×54 146×54, 146×54 |
Diffuser | Polycarbonate Opal Microprismatic |
Driver | Constant Current |
Finish | White Finish |
Height (mm) | 29 |
IK - Impact Protection | IK06 |
IP Rating | IP40 |
Length (mm) | 615 1208 1505 300 150 |
Lifetime (h) | 50,000 hr life expectancy |
Lumen Output (lm) | 3000K - 1535lm. 4000K - 1550lm. 5700K - 1475lm 3000K - 3320lm. 4000K - 3475lm. 3450K - 1475lm 3000K - 4100lm. 4000K - 4140lm. 5700K - 4120lm 3000K - 985lm. 4000K - 1175lm. 5700K - 1145lm 3000K - 1380lm. 4000K - 1625lm. 5700K - 1600lm 3000K - 655lm. 4000K - 815lm. 5700K - 800lm |
Lumen per Circuit Watt | 3000K - 105 lm/w. 4000K - 110lm/w. 5700K - 105lm/w 3000K - 110lm/w. 4000K - 115lm/w. 5700K - 115lm/w 3000K - 115lm/w. 4000K - 115lm/w. 5700K - 110lm/w 3000K - 90lm/w. 4000K - 105lm/w. 5700K - 100lm/w 3000K - 95lm/w. 4000K - 105lm/w. 5700K - 100lm/w 3000K - 90lm/w. 4000K - 110lm/w. 5700K - 100lm/w |
Optical Opening Angle (°) | 110º |
System Power (W) | 14 29 36 11 15 8 |
Voltage (V) | 220-240 |
Width (mm) | 62 180 300 150 |
Technical Datasheet |
Code | Cut Out (mm) | Length (mm) | Lumen Output (lm) | Lumen per Circuit Watt | System Power (W) | Width (mm) | Files | |
|---|---|---|---|---|---|---|---|---|
M2120030/MC Slim Line Recessed Linear Luminaires | 1201×54 | 1208 | 3000K - 3320lm. 4000K - 3475lm. 3450K - 1475lm | 3000K - 110lm/w. 4000K - 115lm/w. 5700K - 115lm/w | 29 | 62 | ||
M2150037/MC Slim Line Recessed Linear Luminaires | 1498×54 | 1505 | 3000K - 4100lm. 4000K - 4140lm. 5700K - 4120lm | 3000K - 115lm/w. 4000K - 115lm/w. 5700K - 110lm/w | 36 | 62 | ||
M260015/MC Slim Line Recessed Linear Luminaires | 607×54 | 615 | 3000K - 1535lm. 4000K - 1550lm. 5700K - 1475lm | 3000K - 105 lm/w. 4000K - 110lm/w. 5700K - 105lm/w | 14 | 62 | ||
M2L8/MC Slim Line Recessed Linear Luminaires | 146×54, 146×54 | 150 | 3000K - 655lm. 4000K - 815lm. 5700K - 800lm | 3000K - 90lm/w. 4000K - 110lm/w. 5700K - 100lm/w | 8 | 150 | ||
M2T11/MC Slim Line Recessed Linear Luminaires | 300×54, 177×54 | 300 | 3000K - 985lm. 4000K - 1175lm. 5700K - 1145lm | 3000K - 90lm/w. 4000K - 105lm/w. 5700K - 100lm/w | 11 | 180 | ||
M2X15/MC Slim Line Recessed Linear Luminaires | 300×54, 300×54 | 300 | 3000K - 1380lm. 4000K - 1625lm. 5700K - 1600lm | 3000K - 95lm/w. 4000K - 105lm/w. 5700K - 100lm/w | 15 | 300 |
