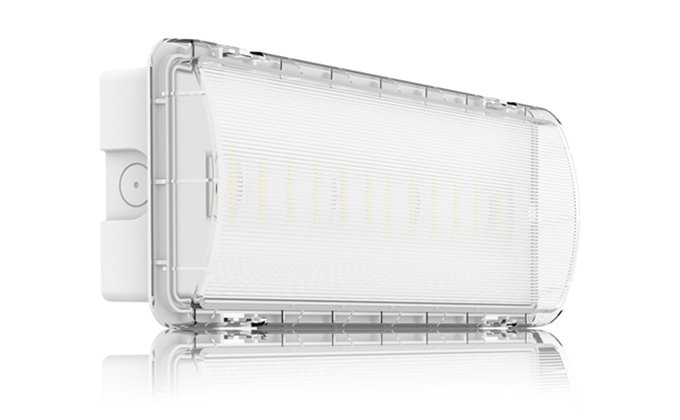

XYLUX BHDX LED Emergency Bulkhead
Emergency Lighting
Application
Emergency Lighting
Emergency Lighting
Colour (K)
5000
5000
Height (mm)
135
135
IP Rating
IP65
IP65
Length (mm)
268
268
MilliAmperes (mA)
80 - 120
80 - 120
System Power (W)
9 - 18
9 - 18
Voltage (V)
220-240
220-240
Width (mm)
335
335
Product Description
XYLUX BHDX is an emergency luminaire offering market leading outputs (1100lm+) & higher protection classes (IP65/IK07) in even the roughest of environments, specifically high risk areas where there is a need for higher lux levels as well as protection against dust, dirt and water ingress.
These luminaires offer a range of technology options including:
- Standard
- AutoTest
- DALI/DALI-2
- N-LIGHT AIR Wireless
All luminaires in this range are compliant with:
- EN 55015
- EN 61000-3-2
- EN 61000-3-3
- EN 61547
- EN 60598-2-22
- BS 5266-1
- EN 62034
- EN 62386
- EN 62031
- EN 62471
Key Features
- Comes with legend pack - 24m viewing distance
- In White & Black as standard
- Easy installation with push terminals
- DALI-2 level interoperability*
- Recessed Mounting option available
- Integral status indicator
- Maintained or Non-Maintained operation
Available Specification
Application | Emergency Lighting |
Battery Type | Rechargable LiFePO4 batteries |
Bulb Type | LED |
Colour (K) | 5000 |
Control Type | Standard non-AutoTest® DALI/DALI2 AutoTest® |
Depth (mm) | 77 |
Height (mm) | 135 |
IK - Impact Protection | IK07 |
IP Rating | IP65 |
Length (mm) | 268 |
Lumen Output (lm) | 1170 649 |
Max Temp (°C) | 45°C |
MilliAmperes (mA) | 120 80 |
System Power (W) | 18 9 |
Voltage (V) | 220-240 |
Weight (kg) | Max. 1250g |
Width (mm) | 335 |
Files
Photometric Data | |
Technical Datasheet | |
Installation Manual |
Products
Code | Control Type | Lumen Output (lm) | MilliAmperes (mA) | System Power (W) | Files | |
|---|---|---|---|---|---|---|
9006618 Standard XYLUX BHDX Emergency Bulkhead | Standard non-AutoTest® | 649 | 80 | 9 | ||
9006619 XYLUX BHDX AutoTest LED Emergency Bulkhead | AutoTest® | 649 | 80 | 9 | ||
9006620 XYLUX BHDX LED DALI/DALI-2 Emergency Bulkhead | DALI/DALI2 | 649 | 80 | 9 | ||
9006621 Standard XYLUX BHDX HO Emergency Bulkhead | Standard non-AutoTest® | 1170 | 120 | 18 | ||
9006622 XYLUX BHDX AutoTest HO LED Emergency Bulkhead | AutoTest® | 1170 | 120 | 18 | ||
9006623 XYLUX BHDX DALI/DALI-2 HO LED Emergency Bulkhead | DALI/DALI2 | 1170 | 120 | 18 |
Accessories
ACCESSORIES | 9006624 (XYLUX BHDX Recessed Accessory) |
